PP coater

Product overview

    On line coater, sheet coater for production: pet, PC, PP, ABS, alcohol resistant anti-static liquid, silicone oil, antifogging agent and other materials. It is mainly used for the production of film, paper and other surface coating process. It is to apply a layer of adhesive, coating or ink with specific functions on the rolled substrate, and then roll up after drying. The special multi-functional coating head can realize the production of various forms of surface coating. The winding and unwinding of coater are equipped with full speed automatic film joining mechanism and PLC program tension closed-loop automatic control.

Outline

 1、 Coating unit 2. Drying unit 3. Coating unit 4. Drying unit 5. Cooling unit

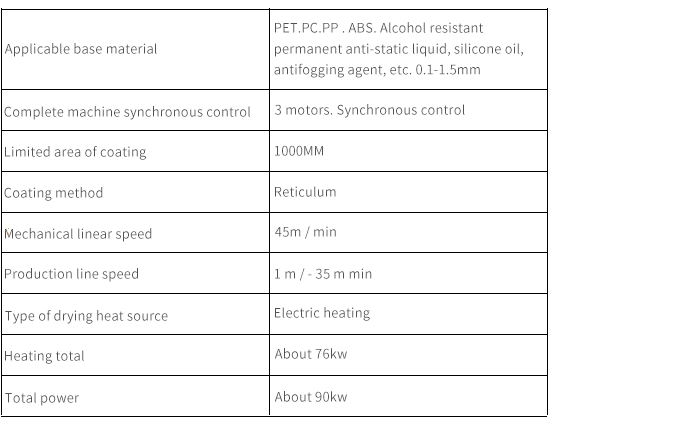

Main technical parameters

Product advantages

1. Stable tension control. The tension control at all levels is completed by the frequency converter, which makes the tension sensor realize the tension control, and the system is simple and stable. PLC and synchronous controller are used to control the speed of the drive roller frequency converter, and closed-loop tension control (inductive vector control) can easily realize the tension balance in the acceleration and deceleration process.

2. Stable heating system. The oven is a multi-stage independent temperature control system. The heating adopts electric heating. The hot air enters the drying system. The adjustable internal circulation air suction and exhaust device has strong air inlet and exhaust, and the drying is complete. In addition, the oven adopts special shunt structure to ensure uniform and constant heating.

3. Stable glue scraper. The coating scraper shaft adopts the heavy-duty double axis mechanical independent travel, the scraper adjustment mode is manual with pneumatic, and the angle can be adjusted at will. The coating quantity depends on the mesh roller. Different coating quantity is based on the mesh roller of different mesh.

4. Automatic winder. The winder is a double position winder, which adopts precise analog quantity and ultrasonic mixing correction system, and the winder is flat without stretching. And equipped with automatic roll change pneumatic cutter.

After-sale service

1. Installation and commissioning (including site layout of equipment, etc.).

2. Train the buyer's mechanical operators.

3. Guarantee of mechanical equipment:

In case of any mechanical or electrical fault or defect within one year after delivery, the Seller shall guarantee

4. Quality statement of mechanical equipment:

The supplier shall organize production according to the structural drawing confirmed by the demander. After the completion of machine production, the Demander shall send technical personnel to the supplier's factory to check the structural drawing and configuration sheet, and sign the acceptance confirmation document before delivery. After the goods arrive at the buyer, the buyer shall be responsible for the other changes except for the quality reasons of the machine itself.
